2008 - MX-5 - Body and Accessories

AUDIO AMPLIFIER REMOVAL/INSTALLATION

Except Pawer Retractable hardtop

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

3. Remove the following parts:

a. Console (See CONSOLE REMOVAL/INSTALLATION.)

b. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

c. Scuff plate (SCUFF PLATE REMOVAL/INSTALLATION.)

d. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

e. Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)

f. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

g. Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

h. Seat belt set plate (See SEAT BELT REMOVAL/INSTALLATION.)

i. Seat back crossmember assembly (See SEAT BACK CROSSMEMBER ASSEMBLY REMOVAL/INSTALLATION.)

j. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION.)

k. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

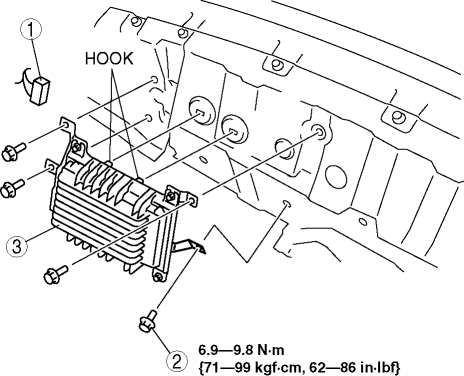

4. Remove in the order indicated in the table.

1	Connector
2	Bolt
3	Audio amplifier

5. Install in the reverse order of removal.

Power Retractable hardtop

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

3. Remove the following parts:

a. Console (See CONSOLE REMOVAL/INSTALLATION.)

b. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

c. Scuff plate (SCUFF PLATE REMOVAL/INSTALLATION.)

d. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

e. Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)

f. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

g. Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

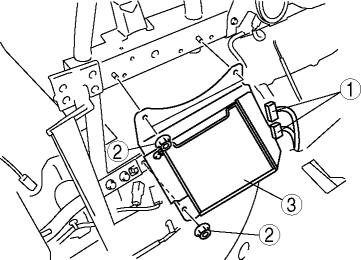

4. Remove in the order indicated in the table.

1	Connector
2	Nut
3	Audio amplifier

5. Install in the reverse order of removal.
