2008 - MX-5 - Body and Accessories

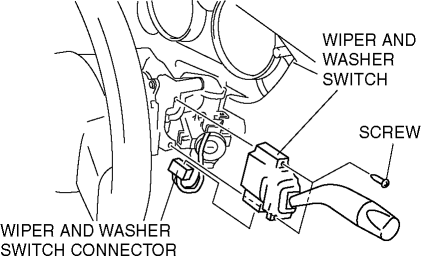

WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
3. Remove the column cover.(See COLUMN COVER REMOVAL/INSTALLATION.)
4. Disconnect the wiper and washer switch connector.

5. Remove the screws, then remove the wiper and washer switch.
6. Install in the reverse order of removal.
