2008 -
MX-5 -
Body and Accessories
LICENSE PLATE LIGHT REMOVAL/INSTALLATION
1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY
REMOVAL/INSTALLATION [LF].)

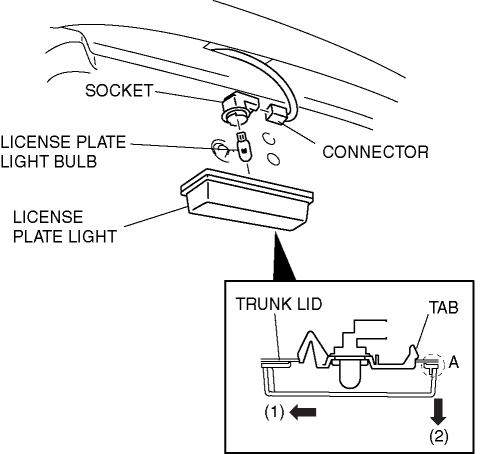

3. Move the license plate light in the direction of the arrow (1) and detach the tab.
4. Pull area A of the license plate light in the direction of the arrow (2) and remove the license plate
light.
5. Disconnect the connector.
6. Detach the socket and remove the license plate light bulb.
7. Install in the reverse order of removal.
