2008 - MX-5 - Body and Accessories

BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

3. Loosen the starter installation bolts only enough that the starter is loose, but not removed.(P66M-D)

(See STARTER REMOVAL/INSTALLATION [LF].)

4. Remove the transmission.(P66M-D)(See TRANSMISSION REMOVAL/INSTALLATION [P66M-D].)

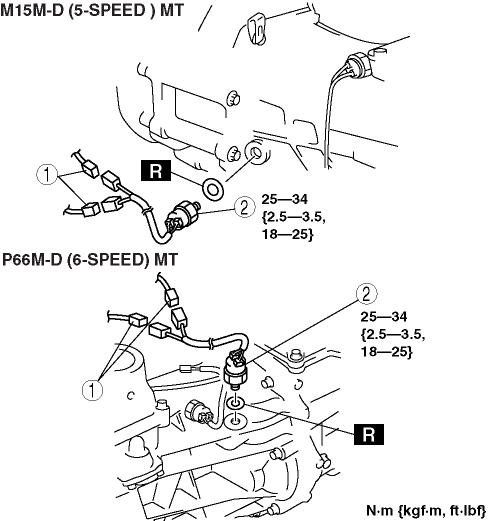

5. Remove in the order indicated in the table.

1	Connector
2	Back-up light switch

6. Install in the reverse order of removal.
