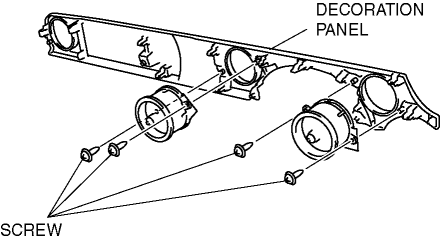

1. Remove the decoration panel. (driver’s side) (See DECORATION PANEL REMOVAL/INSTALLATION.)

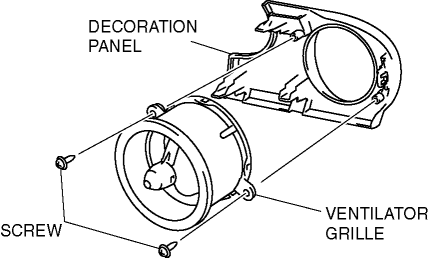

2. Remove the screws.
3. Remove the ventilator grille.
4. Install in the reverse order of removal.

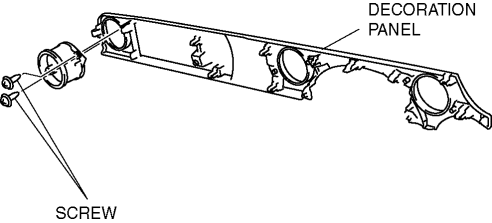

1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)
4. Remove the center panel unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)
5. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
6. Remove the decoration panel. (passenger’s side) (See DECORATION PANEL REMOVAL/INSTALLATION.)
7. Remove the screws.
8. Remove the ventilator grille.
9. Install in the reverse order of removal.
1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)
4. Remove the center panel unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)
5. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
6. Remove the decoration panel. (passenger’s side) (See DECORATION PANEL REMOVAL/INSTALLATION.)
7. Remove the screws.
8. Remove the ventilator grille.
9. Install in the reverse order of removal.
