2008 - MX-5 - Body and Accessories

ROOF MOTOR REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

3. Remove the following parts:

a. Console (See CONSOLE PANEL REMOVAL/INSTALLATION.)

b. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

c. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

d. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

e. Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)

f. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

g. Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

h. Seat belt upper anchor installation bolt (See SEAT BELT REMOVAL/INSTALLATION.)

i. Power retractable hardtop link bracket (See POWER RETRACTABLE HARDTOP LINK BRACKET REMOVAL/INSTALLATION.)

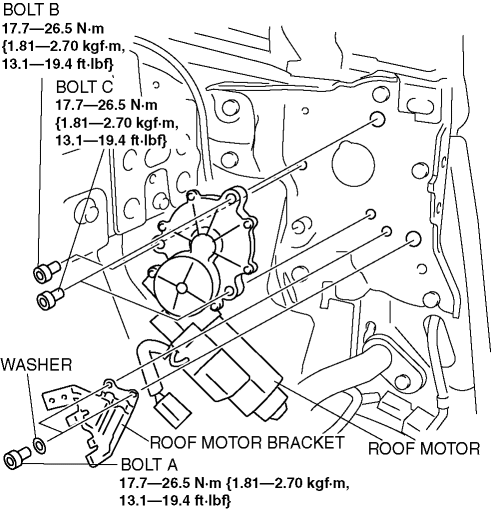

4. Disconnect the roof motor connector.

5. Remove the bolts A and washers.

6. Remove the roof motor bracket.

7. Remove the bolts B and C.

8. Remove the roof motor.

9. Install in the reverse order of removal.
