2008 - MX-5 - Body and Accessories

SEAT WARMER UNIT INSPECTION

Seat Cushion

1. Remove the seat. (See SEAT REMOVAL/INSTALLATION.)

2. Remove the seat cushion trim. (See SEAT DISASSEMBLY/ASSEMBLY.)

3. Connect a jumper wire to the connector for the seat cushion warmer to seat back warmer.

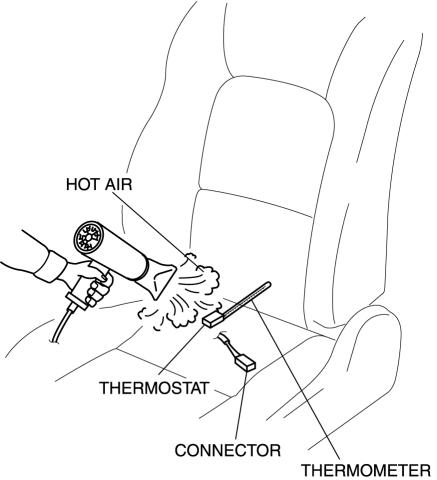

4. While inspecting for continuity between the terminals A and B of the connector, use a dryer to warm the thermostat of the seat warmer unit on seat cushion.

5. Verify that the continuity between the seat warmer terminals is as indicated in the table.

• If not as indicated in the table, replace the seat warmer unit.



Seat Back

1. Remove the seat. (See SEAT REMOVAL/INSTALLATION.)

2. Remove the seat back trim. (See SEAT DISASSEMBLY/ASSEMBLY.)

3. Verify that the continuity between the seat warmer terminals is as indicated in the table.

• If not as indicated in the table, replace the seat warmer unit.
