2008 - MX-5 - Body and Accessories

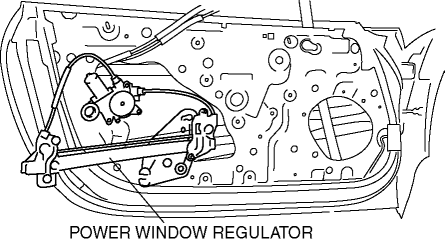

POWER WINDOW REGULATOR REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.(See BATTERY REMOVAL/INSTALLATION [LF].)
3. Remove the door trim.(See DOOR TRIM REMOVAL/INSTALLATION.)
4. Remove the door unit.(See DOOR UNIT REMOVAL/INSTALLATION.)
5. Remove the door glass.(See DOOR GLASS REMOVAL/INSTALLATION.)
6. Remove the nuts.

7. Remove the power window regulator.

8. Install in the reverse order of removal.
