1. Disconnect the negative battery cable.
2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)
3. Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)
4. Connect the power window main switch connector.
5. Connect the negative battery cable.
6. Verify that the voltages of each of the terminals are as indicated in the terminal voltage table.
If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.
If the system does not work normally even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch. (See Terminal Voltage Table (Reference).)
|

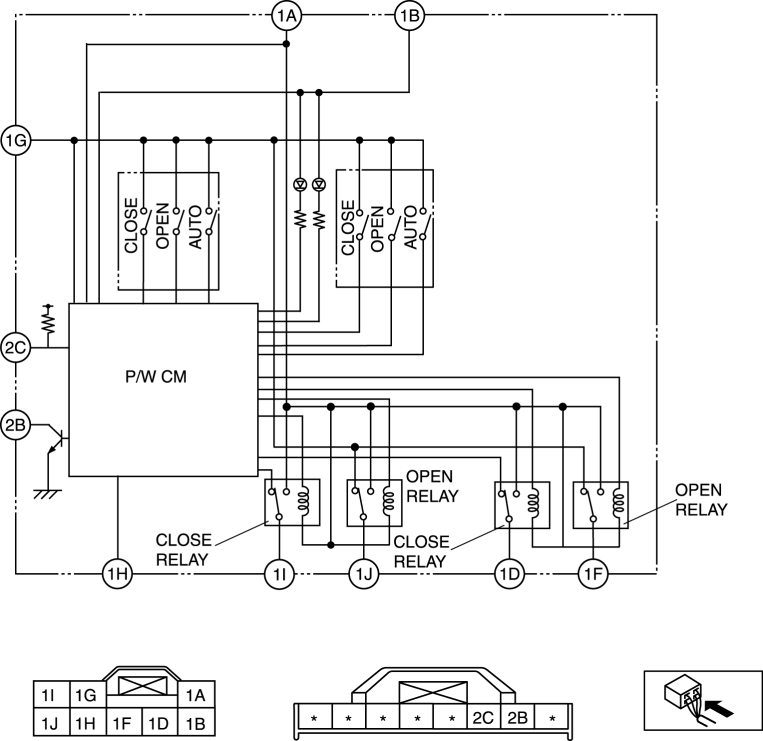

Terminal |
Signal name |
Connected to |
Measured condition |
Voltage (V) |
Inspection item (s) |
|
1A |
Power supply |
P.WIND2 20 A fuse |
Under any condition |
B+ |
|
|
1B |
IG 1 |
METER 15 A fuse |
Ignition switch is at ON position |
B+ |
|
|
Ignition switch is at LOCK position |
1.0 or less |
||||
|
1D |
Close output |
Power window motor |
While door glass is opening |
1.0 or less |
|
|
While door glass is closing |
B+ |
||||
|
1F |
Open output |
Power window motor |
While door glass is opening |
B+ |
|
|
While door glass is closing |
1.0 or less |
||||
|
1G |
GND |
Body ground |
Under any condition |
1.0 or less |
|
|
1H |
Communication |
Keyless control module |
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible. |
|
|
|
1I |
Close output |
Power window motor |
While door glass is opening |
1.0 or less |
|
|
While door glass is closing |
B+ |
||||
|
1J |
Open output |
Power window motor |
While door glass is opening |
B+ |
|
|
While door glass is closing |
1.0 or less |
||||
|
2B |
Door glass open complete signal |
Power retractable hardtop control module |
Instant when door glass open operation is completed after RHT switch is operation |
1.0 or less (SeeReference.) |
|
|
Other |
B+ |
||||
|
2C |
Door glass open request signal |
Power retractable hardtop control module |
While RHT switch is pressed |
1.0 or less |
|
|
While RHT switch is not pressed |
B+ |
||||
1. Disconnect the negative battery cable.
2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)
3. Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)
4. Connect the power window main switch connector.
5. Connect the negative battery cable.
6. Verify that the voltages of each of the terminals are as indicated in the terminal voltage table.
If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.
If the system does not work normally even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch. (See Terminal Voltage Table (Reference).)
|
Terminal |
Signal name |
Connected to |
Measured condition |
Voltage (V)/Continuity |
Inspection item (s) |
|
B |
IG 1 |
P.WIND 20 A fuse |
Ignition switch is at ON position |
B+ |
|
|
Ignition switch is at LOCK position |
1.0 or less |
||||
|
D |
Close output |
Power window motor |
While door glass is opening |
1.0 or less |
|
|
While door glass is closing |
B+ |
||||
|
F |
Open output |
Power window motor |
While door glass is opening |
B+ |
|
|
While door glass is closing |
1.0 or less |
||||
|
G |
GND |
Body ground |
Under any condition |
1.0 or less |
|
|
I |
Close output |
Power window motor |
While door glass is opening |
1.0 or less |
|
|
While door glass is closing |
B+ |
||||
|
J |
Open output |
Power window motor |
While door glass is opening |
B+ |
|
|
While door glass is closing |
1.0 or less |
||||
|
A |
Door glass open complete signal |
Power retractable hardtop |
While RHT switch is pressed |
1.0 or less |
|
|
While RHT switch is not pressed |
B+ |
||||
|
H |
Door glass open request signal |
Power retractable hardtop |
Instant when door glass open operation is completed after RHT switch is operation |
1.0 or less (SeeReference.) |
|
|
Other |
B+ |

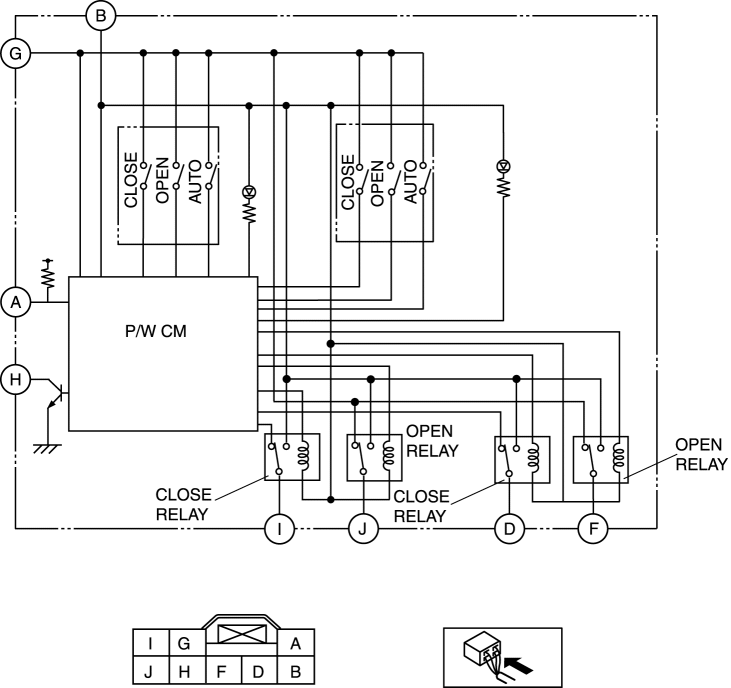

Terminal connected:
Vehicles with exterior open function: 2B (+) — Body ground
Vehicles without exterior open function: H (+) — Body ground
Oscilloscope setting: 2V/DIV (Y) : 500 ms/DIV (X), DC range
Measurement condition: RHT switch is pressed
