2008 - MX-5 - Body and Accessories

POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.(See BATTERY REMOVAL/INSTALLATION [LF].)
3. Remove the console.(See CONSOLE REMOVAL/INSTALLATION.)

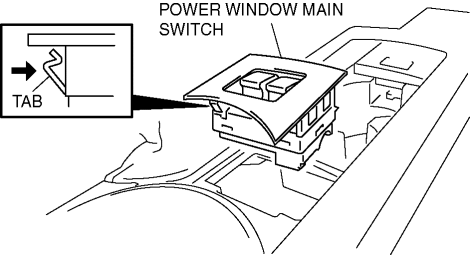

4. Depress the tab and remove the power window main switch.

5. Install in the reverse order of removal.
