DTC

B104B

Driver-side air bag sensor assembly incorrect

B1051

Driver‐side side air bag sensor system internal circuit disabled

B2887

Driver-side side air bag sensor system communication data error

U2017

Driver‐side side air bag sensor system communication error

DETECTION CONDITION

WARNING:

• Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

• The SAS control module detects an error of impact magnitude set in the sensor, which occurs due to installation mismatch of the crash zone sensor or side air bag sensors.

• Malfunction in wiring harness between driver-side side air bag sensor and SAS control module

• Malfunction in driver-side side air bag sensor circuit

POSSIBLE CAUSE

• Driver-side side air bag sensor mis-installed with wrong sensor

• Driver-side side air bag sensor connector malfunction

• Open or short circuit in wiring harness between driver-side side air bag sensor and SAS control module

• Driver-side side air bag sensor malfunction

• SAS control module malfunction

STEP

INSPECTION

ACTION

1

WARNING:

• Handling the air bag system components improperly can accidentally deploy the air bag modules and pre-tensioner seat belts, which may seriously injure you. Read the service warnings and cautions before handling the air bag system components.

  (See AIR BAG SYSTEM SERVICE WARNINGS.)

  (See AIR BAG SYSTEM SERVICE CAUTIONS.)

• Turn the ignition switch to the LOCK position.

• Remove the battery cover.

• Disconnect the negative battery cable and wait for 1 min or more. (See BATTERY REMOVAL/INSTALLATION [LF].)

• Remove the tire house trim (driver-side). (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

• Disconnect the driver-side side air bag sensor connector. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

• Inspect the driver-side side air bag sensor connector. (Corrosion, damage, and disconnected pins)

• Is there any malfunction of the driver-side side air bag sensor connector?

Yes

Replace the driver-side side air bag sensor wiring harness.

No

Go to the next step.

2

• Remove the column cover.

  (See COLUMN COVER REMOVAL/INSTALLATION.)

• Disconnect the clock spring connector.

  (See CLOCK SPRING REMOVAL/INSTALLATION.)

• Remove the glove compartment.

  (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

• Disconnect the passenger-side air bag module connector.

  (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side seat connectors.

  (See SEAT REMOVAL/INSTALLATION.)

• Remove the back trim.

  (See BACK TRIM REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side pre-tensioner seat belt connectors.

  (See SEAT BELT REMOVAL/INSTALLATION.)

• Remove the console panel.

  (See CONSOLE PANEL REMOVAL/INSTALLATION.)

• Disconnect the SAS control module connectors.

  (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)

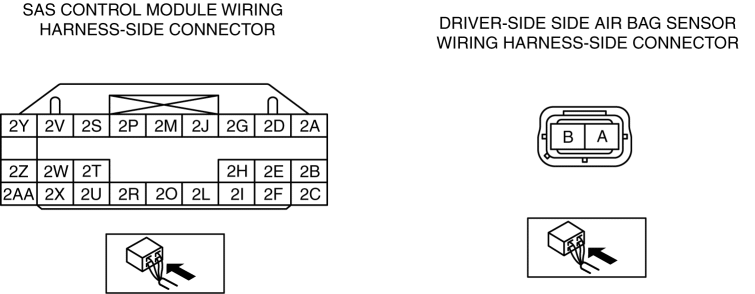

• Inspect the wiring harnesses between SAS control module connector terminal 2F and driver-side side air bag sensor connector terminal A, SAS control module connector terminal 2C and driver-side side air bag sensor connector terminal B for the following:

• Short circuit between terminals

• Short to body ground

• Open circuit

NOTE:

• Inspect for continuity while shaking the wiring harness between the SAS control module and the driver-side side air bag sensor.

• Is the wiring harness normal?

Yes

Go to the next step.

No

Replace the wiring harness between the SAS control module and the driver-side side air bag sensor.

3

• Connect the negative battery cable.

• Turn the ignition switch to the ON position with SAS control module connector and driver-side side air bag sensor connector disconnected.

• Measure the voltage of SAS control module connector terminals 2F and 2C.

NOTE:

• Measure the voltage while shaking the wiring harness between the SAS control module and the driver-side side air bag sensor.

• Is the voltage measured?

Yes

Replace the wiring harness between the SAS control module and the driver-side side air bag sensor.

No

Replace the driver-side side air bag sensor, then go to the next step.

(See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

4

• Turn the ignition switch to the LOCK position.

• Disconnect the negative battery cable and wait for 1 min or more.

• Reconnect all disconnected connectors.

• Connect the negative battery cable.

• Turn the ignition switch to the ON position.

• Clear the DTC for the SAS control module using the M-MDS.

  (See CLEARING DTC.)

• Perform the DTC inspection for the SAS control module using the M-MDS.

  (See DTC DISPLAY.)

• Are the same DTCs present?

Yes

Replace the SAS control module.

(See SAS CONTROL MODULE REMOVAL/INSTALLATION.)

No

DTC troubleshooting completed.
