2008 - MX-5 - HVAC

AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

3. Remove the airflow mode actuator. (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.)

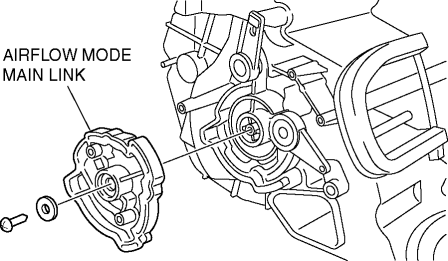

4. Remove the airflow mode main link as shown in the figure.

5. Install in the reverse order of removal.
