2008 - MX-5 - HVAC

AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

3. Remove the following parts:

1. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

2. Knee bolster

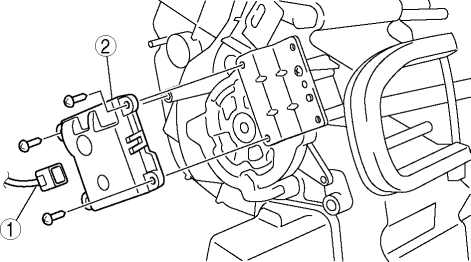

4. Remove in the order indicated in the table.

1	Airflow mode actuator connector
2	Airflow mode actuator

5. Install in the reverse order of removal.
