2008 - MX-5 - HVAC

A/C UNIT DISASSEMBLY/ASSEMBLY

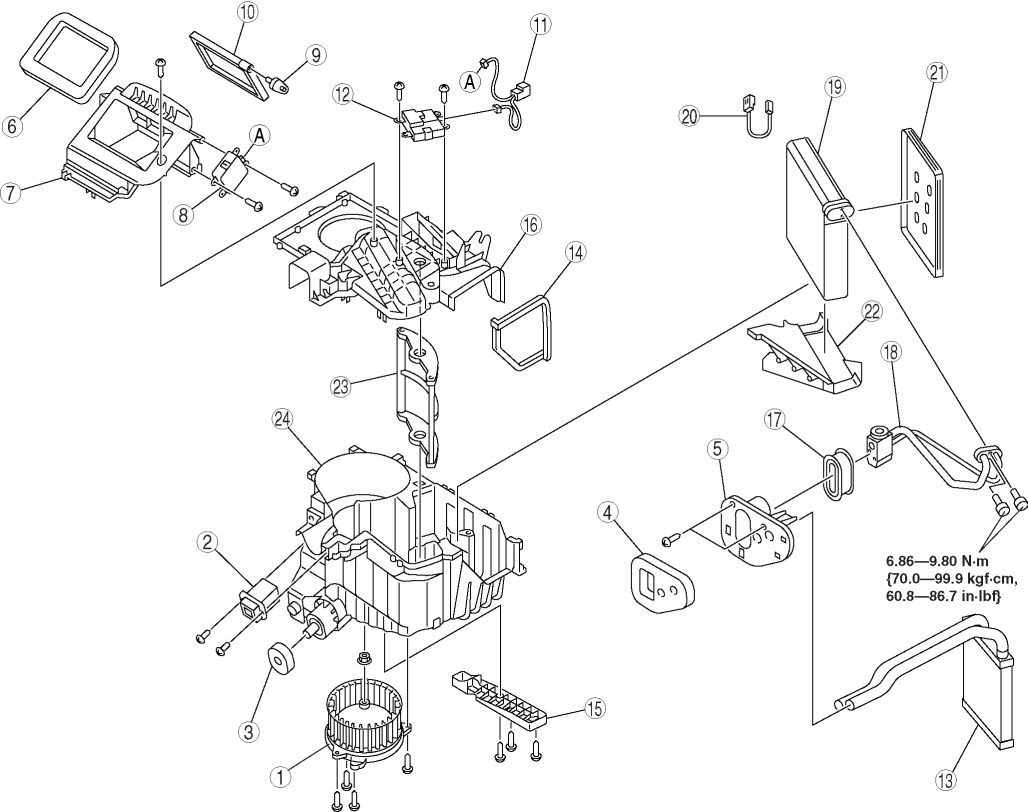

1. Disassemble in the order indicated in the table.

CAUTION:

• If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

• If the air mix damper is removed and reinstalled improperly because the original installation position cannot be specified, the air mix damper and air mix actuator may be damaged when it is operated. Therefore, set the air mix to the middle position before disassembling so that the installation position can be specified.

2. Assemble in the reverse order of disassembly.

1	Blower motor
2	Power MOS FET
3	Polyurethane foam (1)
4	Polyurethane foam (2)
5	Cover (1)
6	Adhesive polyurethane (1)
7	Air intake box
8	Air intake actuator
9	Air intake crank
10	Air intake door
11	Harness
12	Air mix actuator
13	Heater core
14	Adhesive polyurethane (2)
15	Cover (2)
16	A/C case (1)
17	Cover (3)
18	Expansion valve
19	Evaporator
20	Evaporator temperature sensor (See A/C UNIT DISASSEMBLY/ASSEMBLY.)
21	Cover (4)
22	Insulator
23	Air mix damper
24	A/C case (2)

Evaporator Temperature Sensor Assembly Note

1. Assemble the evaporator temperature sensor as shown in the figure.
