1. Engage the parking brake and use wheel chocks at the front and rear of the wheels.
2. Inspect the engine coolant level. (See ENGINE COOLANT LEVEL INSPECTION [LF].)
3. Inspect the engine oil level. (See ENGINE OIL LEVEL INSPECTION [LF].)
4. Inspect the ATF level. (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT [SJ6A-EL].)
5. Inspect the idle speed. (See ENGINE TUNE-UP[LF].)
6. Inspect the ignition timing. (See ENGINE TUNE-UP[LF].)
7. Wait until the engine and transmission reach normal operating temperature.
1. Perform mechanical system test preparation. (See Mechanical System Test Preparation.)WARNING:
Removing the square head plug when the ATF is hot can be dangerous. Hot ATF can come out of the opening and badly burn you. Before removing the square head plug, allow the ATF to cool.

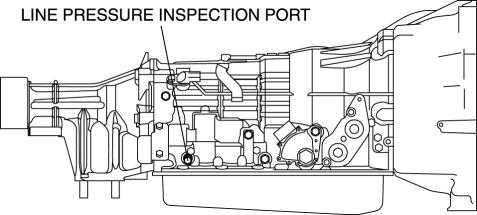

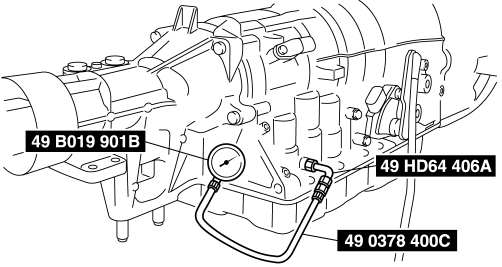

2. Connect the SSTs (49 HD64 406A, 49 0378 400C) to the line pressure inspection port and replace the gauge of the SST (49 0378 400C) with the SST (49 B019 901B).
3. Start the engine and warm it up until the ATF reaches 60—70 °C {140—158 °F}.
4. Shift the selector lever to the D range.
5. Read the line pressure while the engine is idling for the D range.
6. Read the line pressure while the engine is idling for the P, R, N positions range in the same manner as in Steps 4—5.
7. Stop the engine, then replace the SST (49 B019 901B) with the gauge of the SST (49 0378 400C).
8. Start the engine.
9. Firmly depress the brake pedal with the left foot.
10. Shift the selector lever to the D range.CAUTION:
If the accelerator pedal is pressed for more than 5 s while the brake pedal is pressed, the transmission could be damaged. Therefore, perform Steps 11 and 12 within 5 s.
11. Gradually depress the accelerator pedal with the right foot.
12. When the engine speed no longer increases, quickly read the line pressure and release the accelerator pedal.
13. Shift the selector lever to the N position and idle the engine for 1 min or more to cool the ATF.
14. Read the line pressure at the engine stall speed for the D and R position in the same manner as in Steps 9—13. Line pressure
Position/Range
Specification (kPa {kgf/cm2, psi})
D, M
Idle
355—425 {3.7—4.3, 52—61}
Stall
863—959 {8.8—9.7, 126—139}
R
Idle
804—942 {8.2—9.6, 117—136}
Stall
1,424—1,608 {14.6—16.3, 207—233}
WARNING:
Removing the square head plug when the ATF is hot can be dangerous. Hot ATF can come out of the opening and badly burn you. Before removing the square head plug, allow the ATF to cool.
15. Remove the SSTs.
16. Install the test plug and O-ring in the inspection port.Evaluation of line pressure testTightening torque
5.9—8.8 N·m {61—89 kgf·cm, 53—77 in·lbf}
Condition
Possible cause
High pressure in all ranges
Line pressure control solenoid malfunction
Primary regulator valve malfunction
Low pressure in all ranges
Line pressure control solenoid malfunction
Primary regulator valve malfunction
Oil pump malfunction
Low pressure in D range only
Hydraulic circuit of D malfunction
C1 clutch malfunction
Low pressure in R position only
Hydraulic circuit of R malfunction
C3 clutch malfunction
B4 brake malfunction
1. Perform mechanical system test preparation. (See Mechanical System Test Preparation.)
2. Start the engine.
3. Firmly depress the brake pedal with the left foot.
4. Shift the selector lever to the D range.CAUTION:
If the accelerator pedal is pressed for more than 5 s while the brake pedal is pressed, the transmission could be damaged. Therefore, perform Steps 5 and 6 within 5 s.
5. Gently depress the accelerator pedal with the right foot.
6. When the engine speed no longer increases, quickly read the engine speed and release the accelerator pedal.
7. Shift the selector lever to the N position and idle the engine for 1 min or more to cool the ATF.
8. Perform a stall test of the D and R position in the same manner as in Steps 3—7.
9. Turn off the engine. Engine stall speedEvaluation of stall test
Position/Range
Specification (rpm)
D, R, M
2,307—2,607
|
Condition |
Possible cause |
||
|
Low pressure in all ranges |
|
||
|
High pressure in D range only |
|
||
|
High pressure in R range only |
|
||
|
High pressure in all ranges |
|
1. Perform mechanical system test preparation. (See Mechanical System Test Preparation.)
2. Start the engine.
3. Warm up the engine until the ATF temperature reaches 60—70°C {140—158°F}.
4. Shift the selector lever from the N position to D range.
5. Use a stopwatch to measure the time it takes from shifting until shock is felt. Take three measurements for each test and average from the results using the following formula.Formula
Average time lag = (Time 1 + Time 2 + Time 3) / 3
6. Perform the test for the following shifts in the same manner Step 5.
N position → R position
Evaluation of time lag testTime lag
N position → D range: 0.7 s or less
N position → R position: 1.2 s or less
Condition
Possible Cause
N → D shift
Insufficient line pressure
C1 clutch malfunction (slippage)
F3 one-way clutch malfunction
N → R shift
Insufficient line pressure
C1 clutch malfunction (slippage)
C3 clutch malfunction (slippage)
F1 one-way clutch malfunction
