WARNING:
When performing a road test, be aware of other vehicles, people, impediments to avoid an accident.
NOTE:
When the legal speed limit must be exceeded, use a chassis dynamometer instead of performing a road test.
1. Inspect the engine coolant level. (See ENGINE COOLANT LEVEL INSPECTION [LF].)
2. Inspect the engine oil level. (See ENGINE OIL LEVEL INSPECTION [LF].)
3. Inspect the ATF level. (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT [SJ6A-EL].)
4. Inspect the idle speed. (See ENGINE TUNE-UP[LF].)
5. Inspect the ignition timing. (See ENGINE TUNE-UP[LF].)
6. Wait until the engine and transmission reach normal operating temperature.
1. Perform road test preparation. (See Road Test Preparation.)
2. Shift the selector lever to the D range.
3. Accelerate with the throttle half and then wide open.

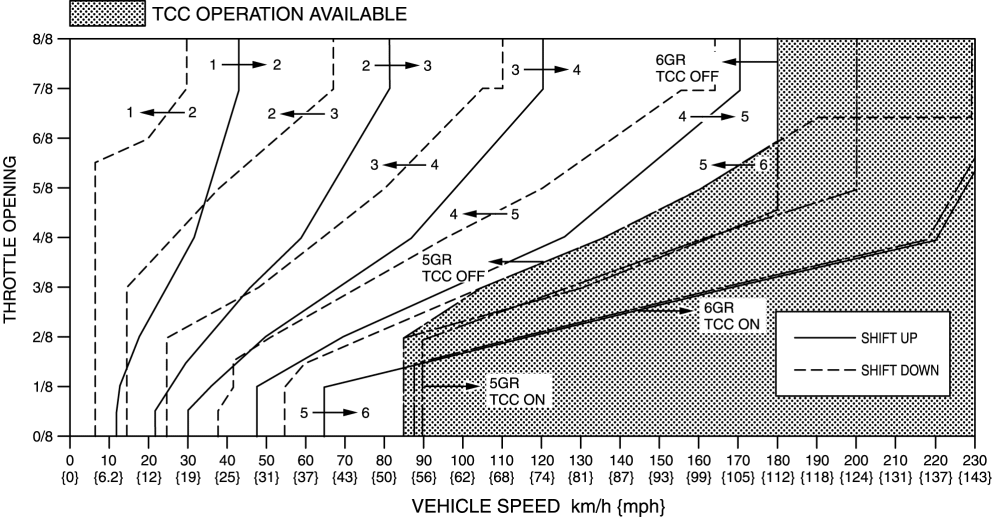

4. Verify that 1→2, 2→3, 3→4, 4→5, and 5→6 upshifts can be obtained. The shift points must be as shown in the table below.
If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
5. Drive the vehicle in 6GR, 5GR, 4GR, 3GR, 2GR and verify that kickdown occurs for 6→5, 5→4, 4→3, 3→2, and 2→1 downshifts, and that the shift points are as shown in the table below.
If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
6. Decelerate the vehicle and verify that engine braking effect is felt in 4GR, 5GR, and 6GR.
If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
7. Drive the vehicle and verify that TCC operation is obtained. The operation points must be as shown in the table below.Shift point table
If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
|
Range |
Mode |
Throttle condition |
Shift |
Vehicle speed (km/h {mph}) |
Turbine speed (rpm) |
|
D |
NORMAL |
Wide open throttle |
D1→D2 |
42—48 {27—29} |
5,450—6,150 |
|
D2→D3 |
79—87 {49—53} |
5,950—6,500 |
|||
|
D3→D4 |
117—127 {73—78} |
6,000—6,450 |
|||
|
D4→D5 |
165—175 {103—108} |
6,050—6,350 |
|||
|
TCC ON (D5) |
195—205 {121—127} |
5,100—5,300 |
|||
|
D5→D6 |
229—239 {142—148} |
4,850—5,050 |
|||
|
TCC ON (D6) |
227—237 {141—146} |
4,850—5,000 |
|||
|
Half throttle |
D1→D2 |
27—34 {17—21} |
3,400—4,450 |
||
|
D2→D3 |
48—64 {30—39} |
3,600—4,800 |
|||
|
D3→D4 |
71—96 {45—59} |
3,650—4,900 |
|||
|
D4→D5 |
118—129 {74—79} |
4,300—4,650 |
|||
|
TCC ON (D5) |
149—176 {93—109} |
3,850—4,550 |
|||
|
D5→D6 |
206—222 {128—137} |
5,350—5,750 |
|||
|
TCC ON (D6) |
204—220 {127—136} |
4,350—4,650 |
|||
|
Closed throttle position |
D6→D5 |
52—58 {33—35} |
1,150—1,200 |
||
|
D5→D4 |
35—41 {22—25} |
950—1,050 |
|||
|
D4→D3 |
22—28 {14—17} |
850—1,000 |
|||
|
D3→D2 |
12—18 {8—11} |
650—900 |
|||
|
D2→D1 |
4—10 {3—6} |
300—700 |
|||
|
Kickdown |
D6→D5 |
224—234 {139—145} |
4,750—4,950 |
||
|
D5→D4 |
159—169 {99—104} |
4,150—4,350 |
|||
|
D4→D3 |
105—115 {66—71} |
3,850—4,150 |
|||
|
D3→D2 |
63—71 {40—44} |
3,250—3,600 |
|||
|
D2→D1 |
27—33 {17—20} |
2,050—2,450 |
|||
|
POWER |
Wide open throttle |
D1→D2 |
42—48 {27—29} |
5,450—6,150 |
|
|
D2→D3 |
79—87 {49—53} |
5,950—6,500 |
|||
|
D3→D4 |
117—127 {73—78} |
6,000—6,450 |
|||
|
D4→D5 |
165—175 {103—108} |
6,050—6,350 |
|||
|
D5→D6 |
229—239 {142—148} |
5,950—6,150 |
|||
|
Half throttle |
D1→D2 |
30—38 {19—23} |
3,900—4,850 |
||
|
D2→D3 |
50—66 {31—40} |
3,750—4,900 |
|||
|
D3→D4 |
77—100 {48—62} |
3,900—5,150 |
|||
|
D4→D5 |
126—138 {79—85} |
4,600—5,000 |
|||
|
D5→D6 |
206—222 {128—137} |
5,350—5,750 |
|||
|
Closed throttle position |
D6→D5 |
82—88 {51—54} |
1,750—1,850 |
||
|
D5→D4 |
57—63 {36—39} |
1,500—1,600 |
|||
|
D4→D3 |
27—33 {17—20} |
1,000—1,200 |
|||
|
D3→D2 |
12—18 {8—11} |
650—900 |
|||
|
D2→D1 |
4—10 {3—6} |
300—700 |
|||
|
Kickdown |
D6→D5 |
224—234 {139—145} |
4,750—4,950 |
||
|
D5→D4 |
159—169 {99—104} |
4,150—4,350 |
|||
|
D4→D3 |
105—115 {66—71} |
3,850—4,150 |
|||
|
D3→D2 |
63—71 {40—44} |
3,250—3,600 |
|||
|
D2→D1 |
27—33 {17—20} |
2,050—2,450 |
1. Perform road test preparation. (See Road Test Preparation.)
2. Shift the selector lever to M range.
3. Verify that 1→2, 2→3, 3→4, 4→5, and 5→6 upshifts and 6→5, 5→4, 4→3, 3→2, and 2→1 downshifts are obtained by manual shifting.
If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
4. Decelerate the vehicle and verify that 6→5, 5→4, 4→3, 3→2, and 2→1 downshifts are obtained. The shift points must be as shown in the table below.
If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
5. Decelerate the vehicle and verify that engine braking effect is felt in 1GR, 2GR, 3GR, 4GR, 5GR, and 6GR.
If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
6. Drive the vehicle and verify that TCC operation is obtained in 5GR and 6GR. The operation points must be as shown in the table below.
If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
7. Drive the vehicle in 6GR, 5GR, 4GR, and 3GR and verify that kickdown occurs for 6→5, 5→4, 4→3 and 3→2 downshifts, and that the shift points are as shown in the table below.Vehicle speed at shift point table
If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
|
Range |
Mode |
Throttle condition |
Shift |
Vehicle speed km/h {mph} |
Turbine speed (rpm) |
|
M |
Normal |
Half throttle |
TCC ON (D5) |
150—177 {93—109} |
3,900—4,600 |
|
TCC ON (D6) |
204—220 {127—136} |
4,350—4,650 |
|||
|
All round |
D6→D5 |
44—50 {28—31} |
950—1,050 |
||
|
D5→D4 |
35—41 {22—25} |
950—1,050 |
|||
|
D4→D3 |
17—23 {11—14} |
650—800 |
|||
|
D3→D2 |
12—18 {8—11} |
650—900 |
|||
|
D2→D1 |
9—15 {6—9} |
700—1,100 |
|||
|
Kickdown |
D6→D5 |
185—195 {115—120} |
3,950—4,100 |
||
|
D5→D4 |
120—130 {75—80} |
3,150—3,350 |
|||
|
D4→D3 |
73—83 {46—51} |
2,700—3,000 |
|||
|
D3→D2 |
46—54 {29—33} |
2,400—2,750 |
1. Shift into the P position on a gentle slope. Release the brake, and verify that the vehicle does not roll.
If there is any malfunction, inspect the AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [SJ6A-EL].)
