2008 - MX-5 - Transmission/Transaxle

TRANSMISSION OIL REPLACEMENT [P66M-D]

1. Position the vehicle on level ground.

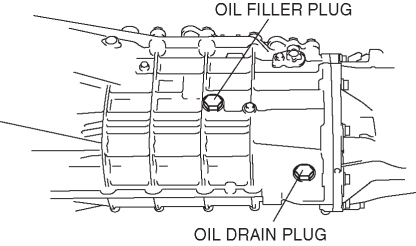

2. Remove oil filler plug and drain plug, and then drain the oil.

3. Clean drain plug.

4. Install drain plug and a new washer.

Tightening torque

• 40—59 N·m {4.1—6.0 kgf·m, 30—43 ft·lbf}

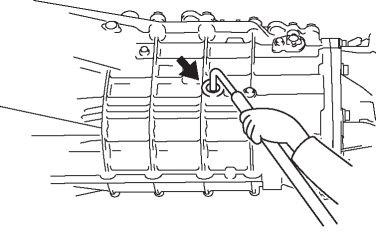

5. Add the specified amount and type of oil through the plug port for oil filler plug to near the brim of the port.

Transmission case specified oil grade

• API Service GL-4

Transmission case specified oil viscosity

• SAE 75W-90

Transmission case capacity (approx. quantity)

• 2.1 L {2.2 US qt, 1.8 lmp qt}

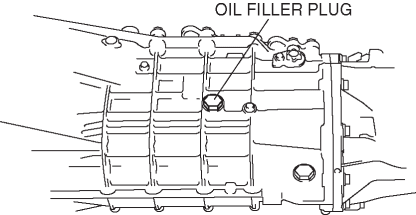

6. Install oil filler plug and a new washer.

Tightening torque

• 40—59 N·m {4.1—6.0 kgf·m, 30—43 ft·lbf}
