2008 - MX-5 - Transmission/Transaxle

TRANSMISSION OIL INSPECTION [P66M-D]

1. Position the vehicle on level ground.

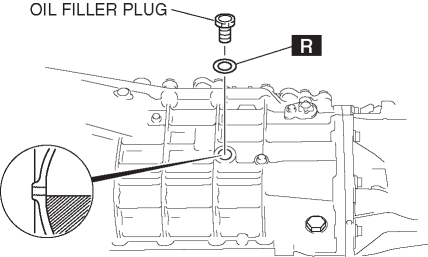

2. Remove oil filler plug.

3. Verify that the oil is near the brim of the plug port.

• If the oil is not near the brim of the plug port, add the specified amount and type of oil.

Transmission case specified oil grade

• API Service GL-4

Transmission case specified oil viscosity

• SAE 75W-90

4. Install oil filler plug and a new washer.

Tightening torque

• 40—59 N·m {4.1—6.0 kgf·m, 30—43 ft·lbf}
