CAUTION:
Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again. Therefore, replace the switch with a new one when replacing the power brake unit or performing any procedure that changes the pedal stroke.
1. Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION.)

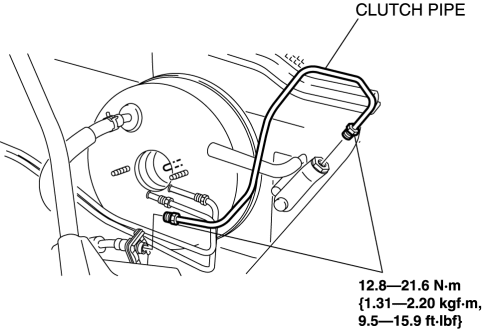

2. Remove the clutch pipe. (MT)

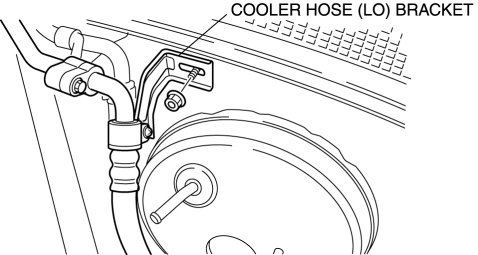

3. Remove the nut shown in the figure, then remove the cooler hose (LO) bracket from the vehicle.

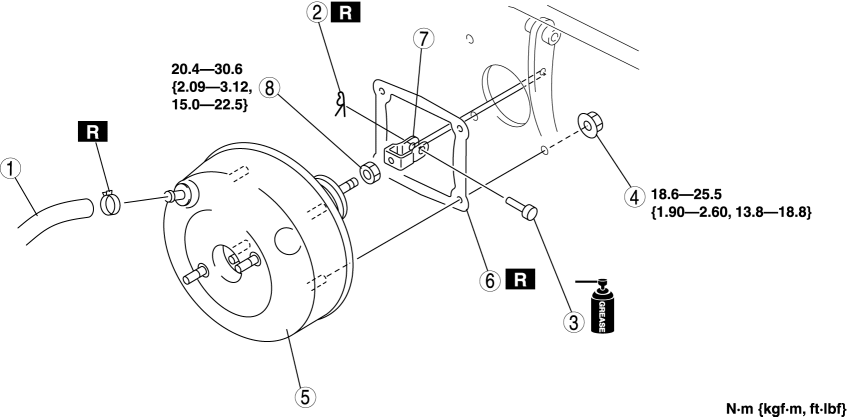

4. Remove in the order indicated in the table.
5. Remove the brake switch. (See BRAKE PEDAL REMOVAL/INSTALLATION.)
6. Install in the reverse order of removal.
7. After installation, perform brake pedal inspection. (See BRAKE PEDAL INSPECTION.)
|
1 |
Vacuum hose |
|
2 |
Snap pin |
|
3 |
Clevis pin |
|
4 |
Nut |
|
5 |
Power brake unit |
|
6 |
Gasket |
|
7 |
Fork |
|
8 |
Locknut |
