ABS warning light and BRAKE system warning light do not illuminate when the ignition switch is turned to ON position.

[TROUBLESHOOTING HINTS]

• Malfunction of instrument cluster or ABS HU/CM

• Improper configuration (instrument cluster)

STEP

INSPECTION

ACTION

1

• Do other warning and indicator lights illuminate when the ignition switch is turned to the ON position?

Yes

Go to step 4.

No

Go to the next step.

2

• Is the instrument cluster ignition power supply fuse normal?

Yes

Go to the next step.

No

Inspect for a short to ground on the circuit with the blown fuse.

Repair or replace if necessary.

Install appropriate amperage fuse.

^*3

• Turn the ignition switch to the ON position.

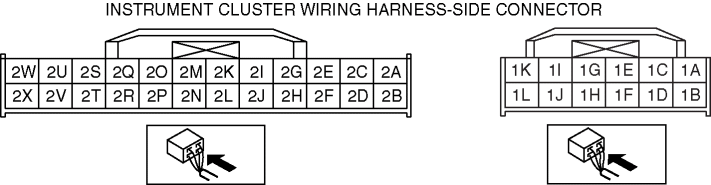

• Measure the voltage at instrument cluster connector (12-pin) terminal 1G.

• Is the voltage approx. 12 V?

Yes

Replace the instrument cluster (open circuit in instrument cluster).

(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

No

Inspect for an open circuit between the instrument cluster and ground.

Repair or replace if necessary.

4

• Retrieve DTCs from the PCM, ABS and instrument cluster.

• Is DTC U1900 retrieved?

Yes

Go to the next step.

No

Inspect the instrument cluster. If normal, go to Step 6.

5

• Retrieve DTCs from the instrument cluster.

• Are DTCs U0121, U0100 and U0214 retrieved?

Yes

Replace the instrument cluster (open circuit in instrument cluster).

(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

No

Inspect network communication for related system malfunction.

Repair or replace if necessary.

6

• Is DTC B2477 retrieved?

Yes

Perform instrument cluster configuration.

(See INSTRUMENT CLUSTER CONFIGURATION.)

No

Replace the ABS HU/CM.

(See ABS HU/CM REMOVAL/INSTALLATION.)
