1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

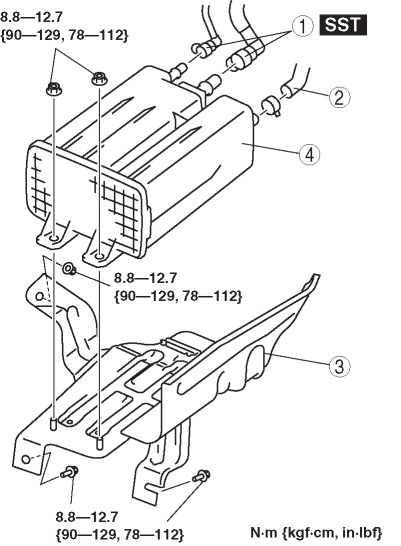

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
|
1 |
Quick connector (Type C) (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [LF].) |
|
2 |
Evaporative hose |
|
3 |
Charcoal canister bracket |
|
4 |
Charcoal canister |
1. Fit the evaporative hose onto the respective fittings, and install clamps as shown.
a. Insert the evaporative hose securely to the nipple.b. Inspect the evaporative hose for damage and deformation.
