1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF].)
2. Remove the battery cover.
3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

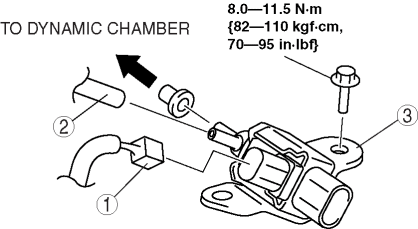

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
|
1 |
Connector |
|
2 |
Vacuum hose |
|
3 |
Variable tumble solenoid valve |
