2008 - MX-5 - Engine

VARIABLE INTAKE AIR SOLENOID VALVE REMOVAL/INSTALLATION [LF]

1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF].)

2. Remove the battery cover.

3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

4. Move the variable tumble solenoid valve (AT), slightly out of the way. (See VARIABLE TUMBLE SOLENOID VALVE REMOVAL/INSTALLATION [LF].)

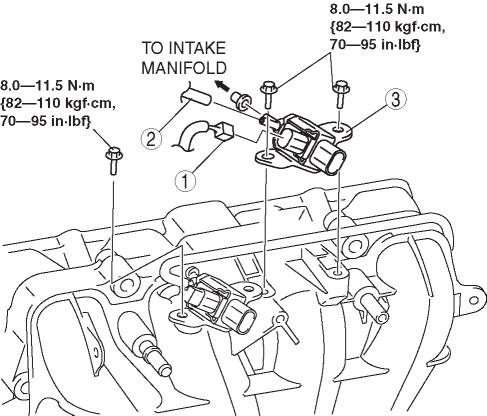

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

1	Connector
2	Vacuum hose
3	Variable intake air solenoid valve
