NOTE:
Perform the following inspection only when directed.
1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
3. Disconnect the throttle body connector.
4. Measure the resistance between throttle actuator terminals A and B.Specification
If not as specified, replace the throttle body. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF].)
If as specified, carry out the “Circuit Open/Short Inspection”.
Ambient temperature (°C {°F})
Resistance (ohm)
Approx. 20 {68}
0.3—100

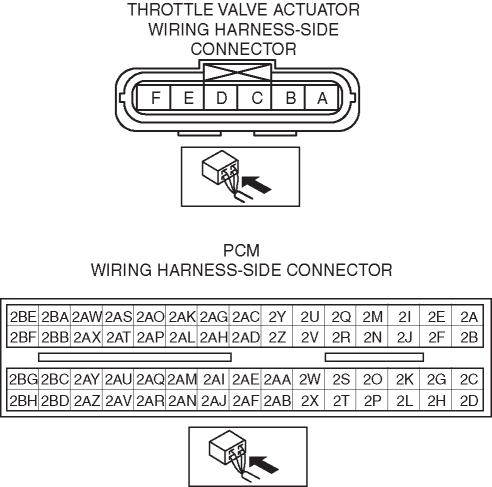

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [LF].)
2. Inspect the following wiring harnesses for open or short (continuity check).
If there is no continuity, the circuit is open. Repair or replace the wiring harness.
Throttle valve actuator terminal A and PCM terminal 2B
Throttle valve actuator terminal B and PCM terminal 2A
If there is continuity, the circuit is shorted. Repair or replace the wiring harness.
Throttle valve actuator terminal A and power supply
Throttle valve actuator terminal A and ground
Throttle valve actuator terminal B and power supply
Throttle valve actuator terminal B and ground
