DTC P2101 [LF]

2008 - MX-5 - Engine

DTC P2101 [LF]

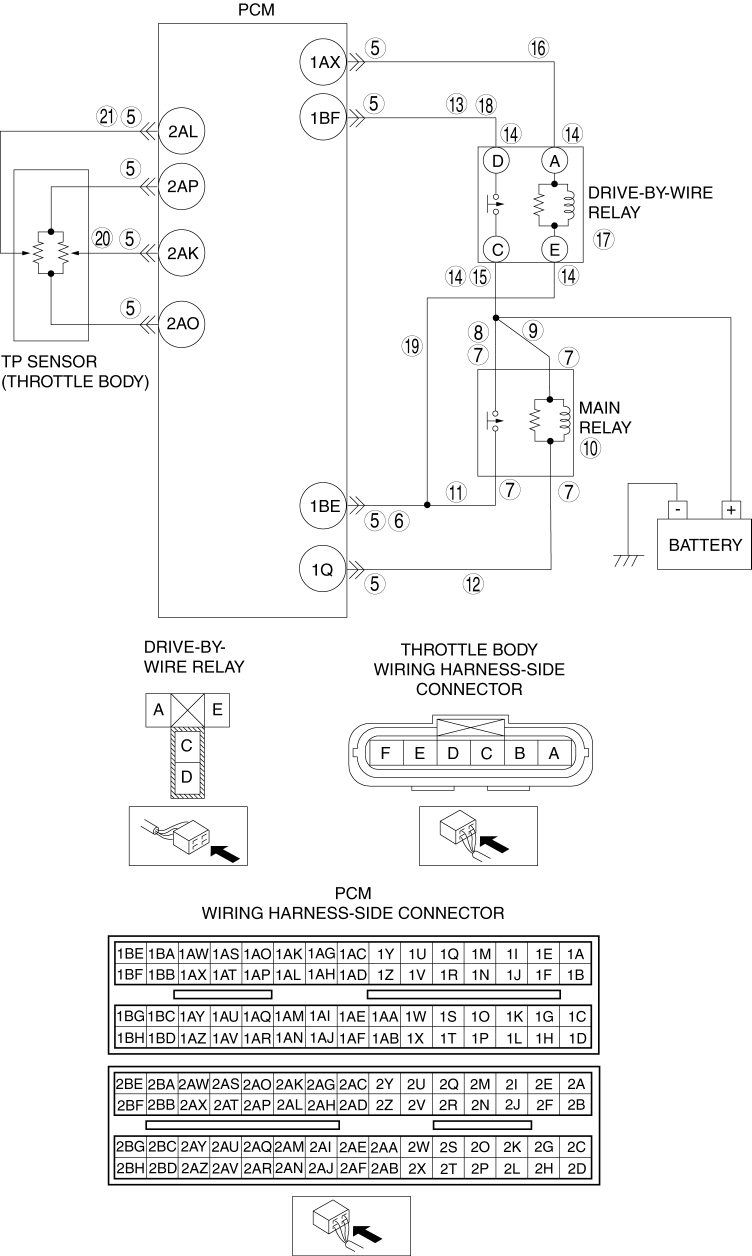

DTC P2101	Throttle actuator circuit range/performance
DETECTION CONDITION	The PCM monitors the input voltage from the drive-by-wire relay when the PCM turns the drive-by-wire relay on. If the input voltage is less than 5.0 V, the PCM determines that the drive-by-wire relay control circuit voltage is low. The PCM monitors the input voltage from the drive-by-wire relay when the PCM turns the drive-by-wire relay off. If the input voltage is more than 5.0 V the PCM determines that the drive-by-wire relay control circuit voltage is high. Diagnostic support note This is a continuous monitor. (CCM) The MIL illuminates if the PCM detects the above malfunction conditions during the first drive cycle. PENDING CODE is available if the PCM detects the above malfunction conditions. FREEZE FRAME DATA is available. The DTC is stored in the PCM memory.
POSSIBLE CAUSE	Drive-by-wire relay and related circuit malfunction Main relay and related circuit malfunction Throttle position sensor No.1 and related circuit malfunction Throttle position sensor No.2 and related circuit malfunction PCM malfunction

Diagnostic procedure


STEP	INSPECTION		ACTION
1	VERIFY FREEZE FRAME DATA HAS BEEN RECORDED Has FREEZE FRAME DATA been recorded?	Yes	Go to the next step.
1		No	Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2	VERIFY RELATED REPAIR INFORMATION AVAILABILITY Verify related Service Bulletins and/or on-line repair information availability. Is any related repair information available?	Yes	Perform repair or diagnosis according to the available repair information. If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	VERIFY RELATED PENDING AND STORED DTCS Turn the ignition switch off, then to the ON position (Engine off). Verify the pending and stored DTCs using the M-MDS. Is any DTC present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [LF].).
3		No	Go to the next step.
4	IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA Is DTC P2101 on FREEZE FRAME DATA?	Yes	Go to the next step.
4		No	Go to the troubleshooting procedures for DTC on FREEZE FRAME DATA.
5	INSPECT PCM CONNECTOR FOR POOR CONNECTION Turn the ignition switch off. Disconnect the PCM connector. Inspect for poor connection (such as damaged, pulled out terminals, corrosion). Is there any malfunction?	Yes	Repair or replace the terminal, then go to Step 22.
5		No	Go to the next step.
6	INSPECT MAIN RELAY OUTPUT VOLTAGE Turn the ignition switch off. Connect the PCM connector. Turn the ignition switch to the ON position (Engine off). Measure the voltage between PCM terminal 1BE and body ground. Is the voltage B+?	Yes	Go to Step 13.
6		No	Go to the next step.
7	INSPECT MAIN RELAY CONNECTOR FOR POOR CONNECTION Turn the ignition switch off. Disconnect the main relay. Inspect for poor connection (such as damaged, pulled out terminals, corrosion). Is there any malfunction?	Yes	Repair or replace the terminal, then go to Step 22.
7		No	Go to the next step.
8	INSPECT POWER SUPPLY OF MAIN RELAY Turn the ignition switch to the ON position (Engine off). Measure the voltage between main relay and body ground. Is the voltage B+?	Yes	Go to the next step.
8		No	Repair or replace the wiring harness for an open circuit, then go to Step 22.
9	INSPECT POWER SUPPLY FOR CONTROL CIRCUIT OF MAIN RELAY Turn the ignition switch to the ON position (Engine off). Measure the voltage between main relay and body ground. Is the voltage B+?	Yes	Go to the next step.
9		No	Go to Step 22.
10	INSPECT MAIN RELAY Inspect the main relay. (See RELAY INSPECTION.) Is the main relay normal?	Yes	Go to the next step.
10		No	Replace the main relay, then go to Step 22.
11	INSPECT POWER CIRCUIT FOR OPEN CIRCUIT Turn the ignition switch off. Disconnect the main relay and the PCM connector. Inspect for continuity between main relay and PCM terminal 1BE (wiring harness-side). Is there continuity?	Yes	Go to the next step.
11		No	Repair or replace the wiring harness for an open circuit, then go to Step 22.
12	INSPECT CONTROL CIRCUIT FOR OPEN CIRCUIT Inspect for continuity between main relay and PCM terminal 1Q (wiring harness-side). Is there continuity?	Yes	Go to Step 22.
12		No	Repair or replace the wiring harness for an open circuit, then go to Step 22.
13	INSPECT DRIVE-BY-WIRE RELAY OUTPUT VOLTAGE Turn the ignition switch to the ON position (Engine off). Measure the voltage between PCM terminal 1BF (wiring harness-side) and body ground. Is the voltage B+?	Yes	Go to Step 20.
13		No	Go to the next step.
14	INSPECT DRIVE-BY-WIRE RELAY CONNECTOR FOR POOR CONNECTION Turn the ignition switch off. Disconnect the drive-by-wire relay. Inspect the drive-by-wire relay connector (wiring harness-side) for poor connection (such as damaged, pulled out terminals, corrosion). Is there any malfunction?	Yes	Repair or replace the terminal, then go to Step 22.
14		No	Go to the next step.
15	INSPECT POWER SUPPLY OF DRIVE-BY-WIRE RELAY Turn the ignition switch to the ON position (Engine off). Measure the voltage between drive-by-wire relay terminal C (wiring harness-side) and body ground.	Yes	Go to the next step.
15		No	Repair or replace the wiring harness for an open circuit, then go to Step 22.
16	INSPECT POWER SUPPLY FOR CONTROL CIRCUIT OF DRIVE-BY-WIRE RELAY Turn the ignition switch to the ON position (Engine off). Measure the voltage between the drive-by-wire relay terminal A (wiring harness-side) and body ground. Is the voltage B+?	Yes	Go to the next step.
16		No	Repair or replace the wiring harness for an open circuit between drive-by-wire relay terminal A and main relay terminal C, then go to Step 22.
17	INSPECT DRIVE-BY-WIRE RELAY Inspect the drive-by-wire relay. (See RELAY INSPECTION.) Is the drive-by-wire relay normal?	Yes	Go to the next step.
17		No	Replace the drive-by-wire relay, then go to Step 22.
18	INSPECT POWER CIRCUIT FOR OPEN CIRCUIT Turn the ignition switch off. Inspect for continuity between drive-by-wire relay terminal D (wiring harness-side) and PCM terminal 1BF (wiring harness-side). Is there continuity?	Yes	Go to the next step.
18		No	Repair or replace the wiring harness for an open circuit, then go to Step 22.
19	INSPECT CONTROL CIRCUIT FOR OPEN CIRCUIT Inspect for continuity between drive-by-wire relay E (wiring harness-side) and PCM terminal 1BE (wiring harness-side).	Yes	Go to the next step.
19		No	Repair or replace the wiring harness for an open circuit, then go to Step 22.
20	INSPECT THROTTLE POSITION SENSOR NO.1 OUTPUT VOLTAGE Turn the ignition switch off. Connect the PCM connector. Turn the ignition switch to the ON position (Engine off). Inspect the voltage between PCM terminal 2AK and body ground. Is the voltage 0.40—0.60 V?	Yes	Go to the next step.
20		No	Inspect throttle position sensor No.1 and the related circuits and terminals. (See THROTTLE POSITION (TP) SENSOR INSPECTION [LF].) Repair or replace if necessary, then go to Step 22.
21	INSPECT THROTTLE POSITION SENSOR NO.2 OUTPUT VOLTAGE Turn the ignition switch to the ON position (Engine off). Inspect the voltage between PCM terminal 2AL and body ground. Is the voltage 4.40—4.60 V?	Yes	Go to the next step.
21		No	Check throttle position sensor No.2 and the related circuits and terminals. (See THROTTLE POSITION (TP) SENSOR INSPECTION [LF].) Repair or replace if necessary, then go to the next step.
22	VERIFY TROUBLESHOOTING OF DTC P2101 COMPLETED Make sure to reconnect all disconnected connectors. Turn the ignition switch to the ON position (Engine off). Clear the DTC from the PCM memory using the M-MDS. Start the engine and idle it. Turn the ignition switch off, then to the ON position (Engine off). Is the same DTC present?	Yes	Replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [LF].)
22		No	Go to the next step.
23	VERIFY AFTER REPAIR PROCEDURE Perform the “AFTER REPAIR PROCEDURE”. (See AFTER REPAIR PROCEDURE [LF].) Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [LF].)
23		No	Troubleshooting completed.
