2008 - MX-5 - Body and Accessories

INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY

CAUTION:

• Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.

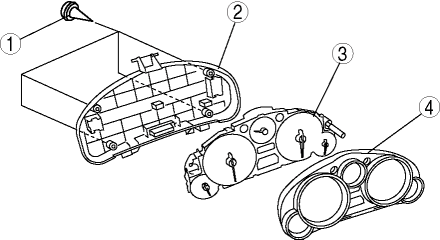

1. Disassemble in the order indicated in the table.

1	Screw
2	Cover
3	Instrument cluster unit
4	Lens

2. Assemble in the reverse order of disassembly.
