2008 - MX-5 - Body and Accessories

MAIN FUSE REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

3. Remove the upper block. (See UPPER BLOCK REMOVAL/INSTALLATION.)

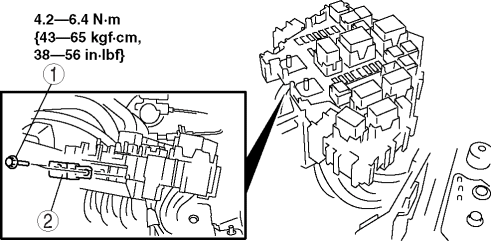

4. Remove in the order indicated in the table.

1	Bolt
2	Main fuse

5. Install in the reverse order of removal.
