2008 - MX-5 - Body and Accessories

ACCESSORY SOCKET REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)

3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)

4. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)

5. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION.)

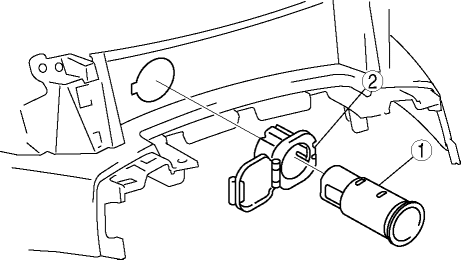

6. Remove in the order indicated in the table.

1	Accessory socket (See Accessory Socket Removal Note.)
2	Cap (See Cap Removal Note.)

7. Install in the reverse order of removal.

Accessory Socket Removal Note

1. While pressing a tape-wrapped flathead screwdriver against the cap projection, pull the accessory socket outward.

Cap Removal Note

1. While pressing the tabs, pull the cap outwards.
