2008 - MX-5 - Body and Accessories

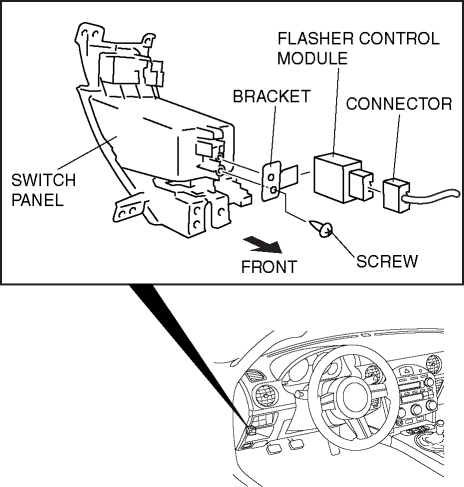

FLASHER CONTROL MODULE REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
3. Disconnect the connector.

4. Remove the screw and then remove the flasher control module.
5. Install in the reverse order of removal.
