2008 - MX-5 - Body and Accessories

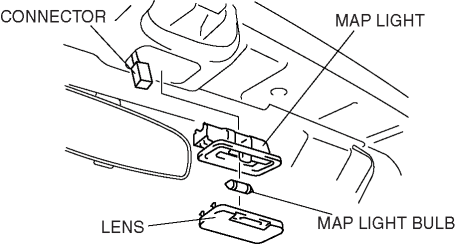

MAP LIGHT REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
3. Remove the lens.

4. Remove the map light bulb
5. Remove the map light.(See Map Light Removal Note.)
6. Disconnect the connector.
7. Install in the reverse order of removal.

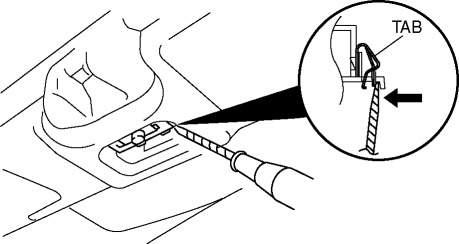

Map Light Removal Note

1. Insert a tape-wrapped flathead screwdriver into the gap between the headliner and the map light.
2. Press the tab, and remove the map light.
