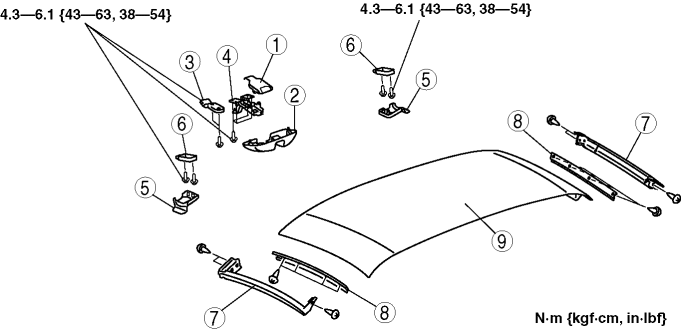

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
|
1 |
Top lock lever cover |
|
2 |
Top lock cover |
|
3 |
Roof hook wedge |
|
4 |
Top lock |
|
5 |
Male wedge cover |
|
6 |
Male wedge |
|
7 |
Weatherstrip |
|
8 |
Retainer (See Retainer Disassembly Note.) (See Retainer Assembly Note.) |
|
9 |
Front roof panel |
1. Mark around the retainer installation screws with paint before removing them.
1. Install the retainers to the link, aligning the retainer marks with the retainer installation screws.
