2008 - MX-5 - Body and Accessories

TRANSMITTER BATTERY REPLACEMENT [KEYLESS ENTRY SYSTEM]

Retractable Key Type

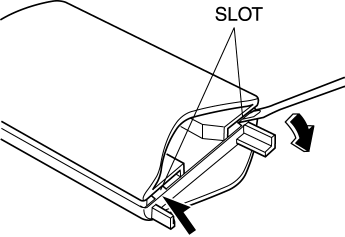

1. Insert a small screwdriver into the slot and push the tab to remove the key from the transmitter.

2. Insert a small screwdriver into the slot and gently pry open the transmitter.

3. Remove the battery.

4. Put in the new battery (CR1620) with the positive pole (+) facing down.

5. Align the front and back covers and snap the transmitter shut.

Battery specification

• Lithium CR1620 × 1

NOTE:

• The batteries will last about 2 years when used 10 times a day.

6. Install the key to the transmitter.

NOTE:

• When attaching the key to the transmitter, squeeze them together until a click sound is heard.

• If the key is not securely attached it will separate from the transmitter.
