2008 - MX-5 - Restraints

CLOCK SPRING INSPECTION

1. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

2. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

3. Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)

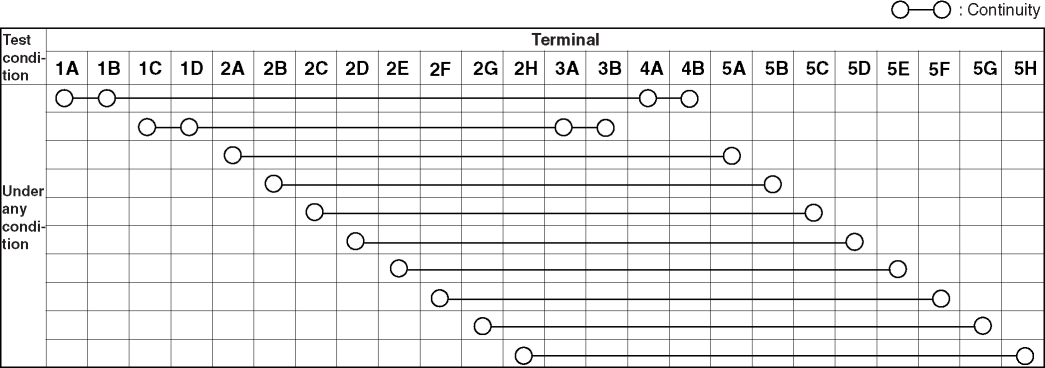

4. Verify that the continuity is as indicated in the table.

• If not as indicated in the table, replace the clock spring.

NOTE:

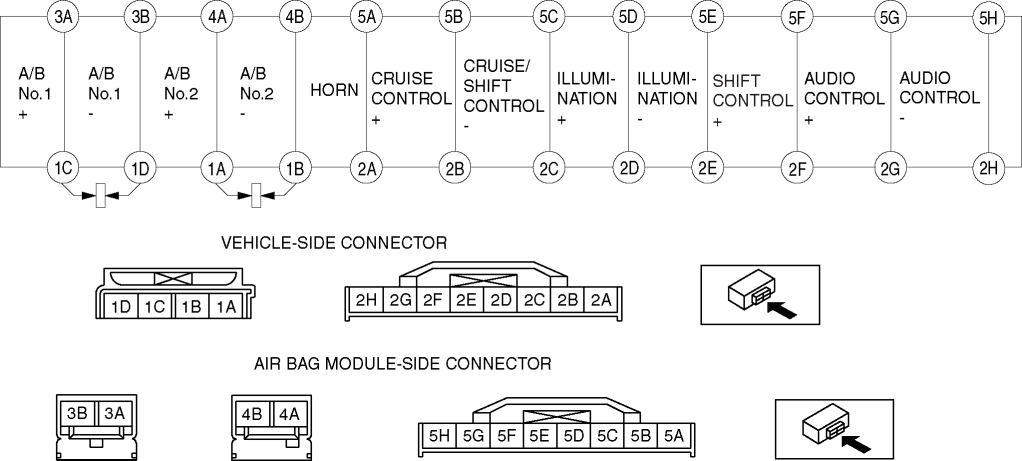

• When the vehicle-side connector for the clock spring is disconnected, terminals 1A, 1B, 1C and 1D are shorted to prevent unexpected operation (deployment) of the air bag module.
