AIR DIST UNIT DISASSEMBLY/ASSEMBLY

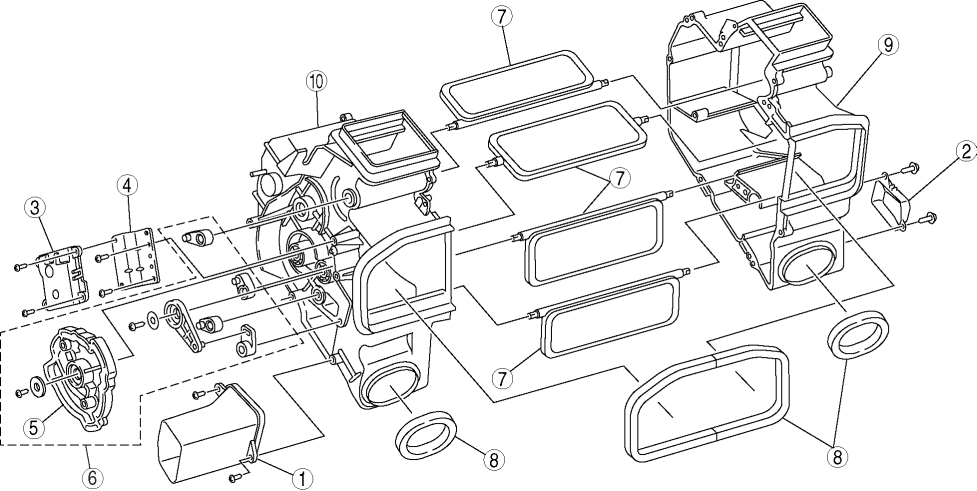

1. Disassemble in the order indicated in the table.

CAUTION:

• If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

1	Duct (1)
2	Duct (2)
3	Airflow mode actuator
4	Bracket
5	Airflow mode main link
6	Airflow mode link set
7	Airflow mode door
8	Polyurethane form
9	Case (1)
10	Case (2)

2. Assemble in the reverse order of disassembly.
