2008 - MX-5 - Transmission/Transaxle

SELECTOR LEVER INSPECTION

1. Turn the ignition switch to the ON position (engine off).

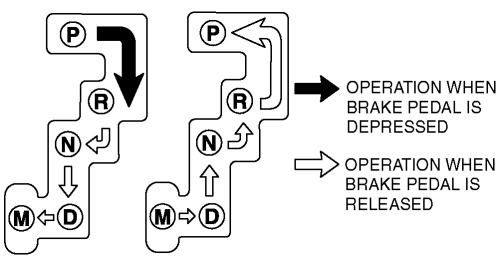

2. With the brake pedal depressed, verify that there is a “click” at each range when shifted.

3. Verify that the selector lever can be shifted.
4. Verify that there is a “click” at each position when shifted from the P position to the M range.
5. Verify that the positions of the selector lever and the indicator are aligned.

6. Verify that the vehicle operates in each selected range.
