CAUTION:
Water or foreign material entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign material on the connector when disconnecting it.
If foreign materials are stuck to the VSS, disturbance by magnetic flux can cause sensor output to be abnormal and thereby negatively affect control. Make sure that foreign materials such as iron filings are not stuck to the VSS during installation.
1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION[LF].)
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION[LF].)
3. Disconnect the VSS connector.
4. Remove the transmission. (See TRANSMISSION REMOVAL/INSTALLATION[P66M-D].)

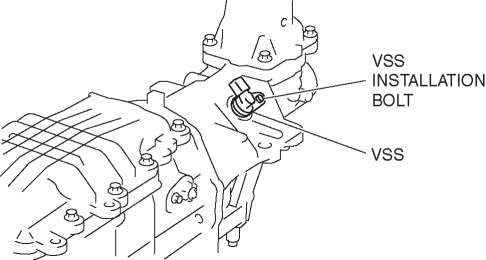

5. Remove the VSS.
6. Apply the specified oil to a new O‐ring and install it on a new VSS.
7. Install the VSS.
Tightening torque
7.8—11 N·m {80—112 kgf·cm, 70—97 in·lbf}
8. Install the transmission. (See TRANSMISSION REMOVAL/INSTALLATION[P66M-D].)
9. Connect the VSS connector.
10. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION[LF].)
11. Install the battery cover. (See BATTERY REMOVAL/INSTALLATION[LF].)
