2008 - MX-5 - Transmission/Transaxle

TRANSMISSION OIL INSPECTION [M15M-D]

1. Position the vehicle on level ground.

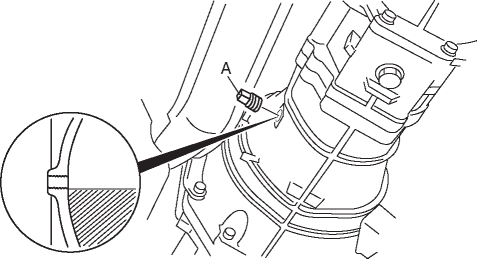

2. Remove the check plug A.

3. Verify that the oil is at the brim of the check plug hole as shown.

• If it is low, add the specified oil from the check plug hole.

Specified oil grade

• API Service GL-4 or GL-5

Specified oil viscosity

• All season: SAE 75W-90

• Above 10°C {50°F}: SAE 80W-90

4. Install the new check plug A.

Tightening torque

• A: 25—39 N·m {2.6—3.9 kgf·m, 19—28 ft·lbf}
