2008 - MX-5 - DriveLine/Axle


1. Park the vehicle on level ground for approx. 5 min. to stabilize the differential oil.

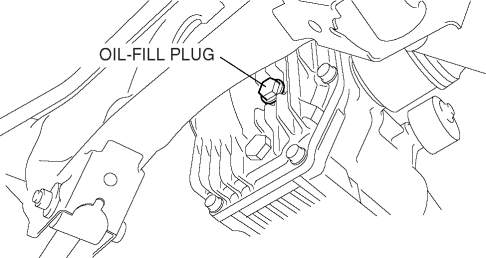

2. Remove the oil-fill plug and the washer.

3. Inspect if the oil level is close to the rim of the oil-fill hole.


4. If the oil level is lower than approx. 12 mm {0.47 in} from the lower end of the oil-fill plug hole, inspect for oil leakage and add the specified oil.
5. Install the oil-fill plug with a new washer and tighten.
