CAUTION:
Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before operations, remove the ABS wheel-speed sensor (axle side), and move the sensor away from the harnesses.
1. When working on the left side, remove the fuel tank protector. (See FUEL TANK REMOVAL/INSTALLATION [LF].)

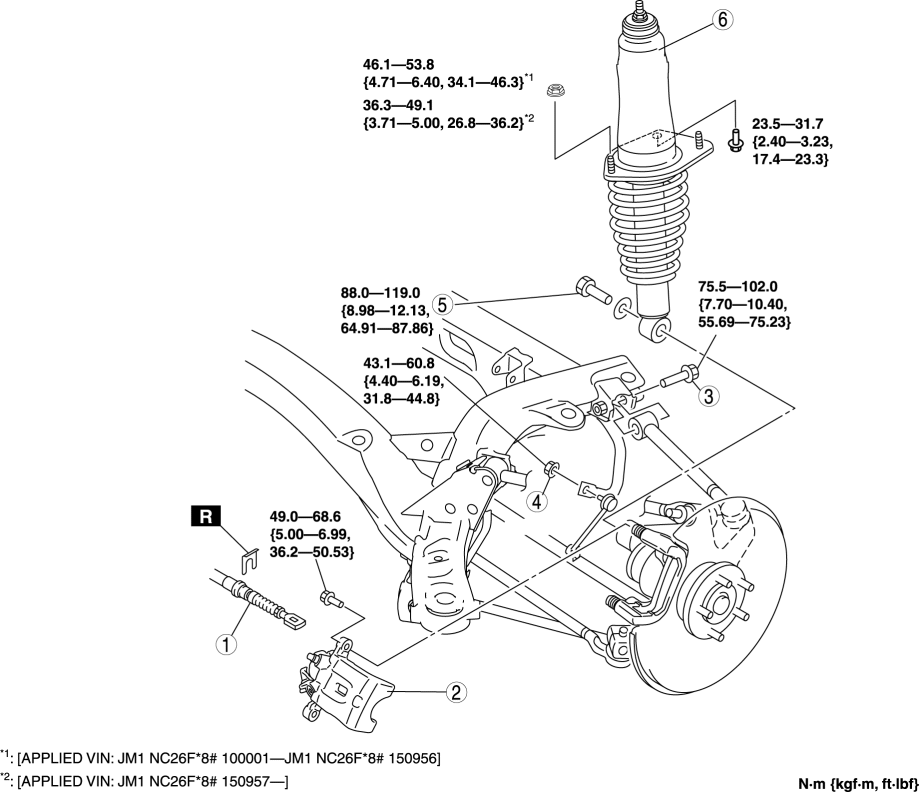

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
|
1 |
Parking brake cable |
|
2 |
Caliper (See Caliper Removal Note.) |
|
3 |
Rear lateral link (upper) bolt |
|
4 |
Stabilizer control link upper nut |
|
5 |
Rear shock absorber lower bolt |
|
6 |
Rear shock absorber and coil spring |
1. Remove the caliper, and hang the cable out of the way.
