2008 - MX-5 - Suspension

REAR STABILIZER REMOVAL/INSTALLATION

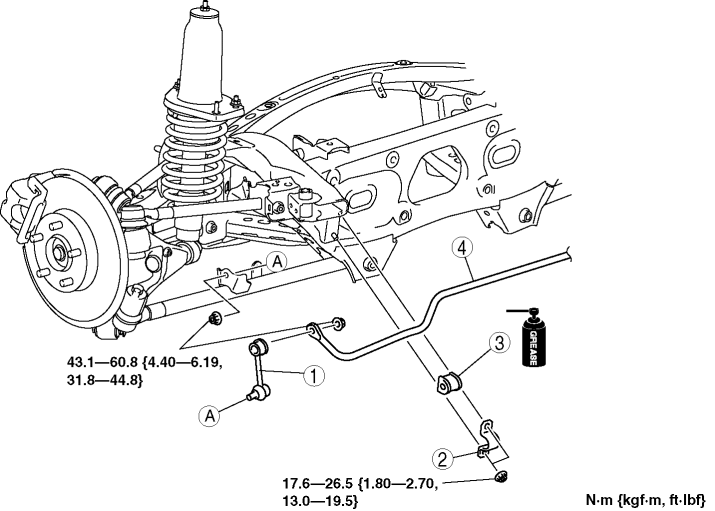

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

Rear Stabilizer Installation Note

1. Install the rear stabilizer so that the identification mark is on the right side of the vehicle.

Stabilizer Control Link Installation Note

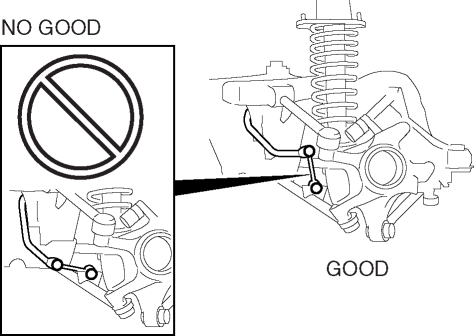

1. Install the stabilizer control link in the proper angle as shown in the figure.

CAUTION:

• Be sure to install the stabilizer control link in the proper position. If it is not installed properly, the stabilizer control link may interfere with peripheral components when driving, causing damage to each other.

2. Place the vehicle on the ground and verify that the stabilizer control link is installed in the angle shown in the figure.
