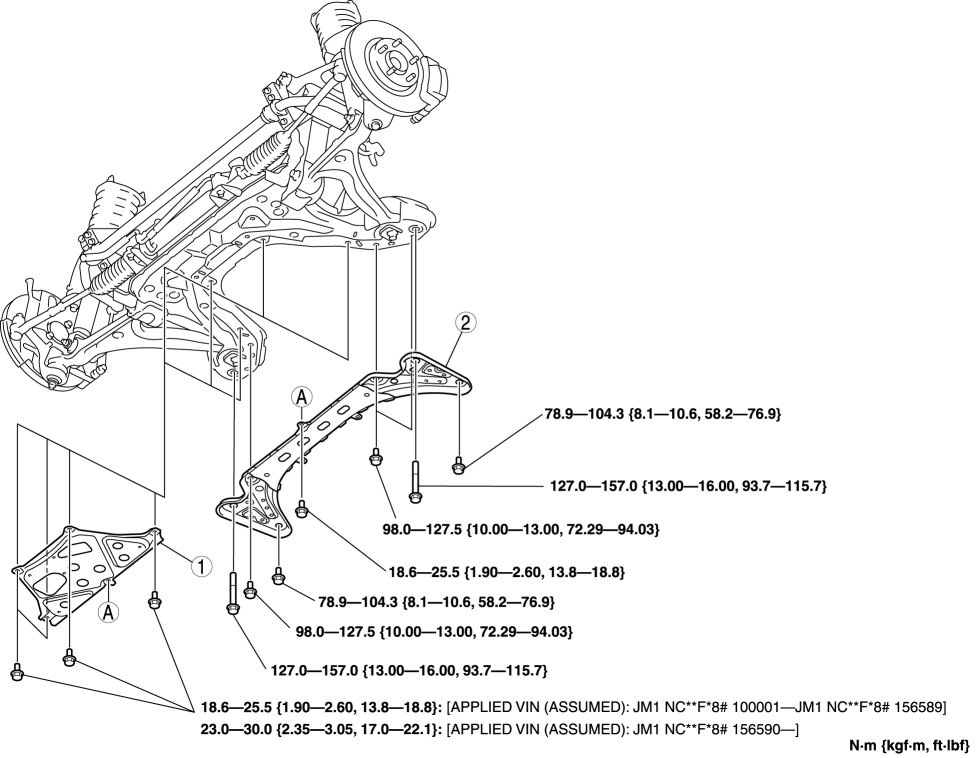

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
|
1 |
Under cover |
|
2 |
Transverse member |
1. Support the crossmember using a jack.
2. Remove the transverse member.

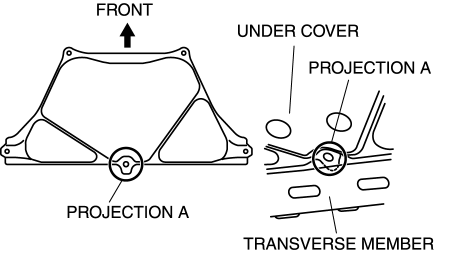

1. Align projection A with the transverse member opening to temporarily support the under cover.
2. Tighten the bolts in the order of A, B and C.
