2008 -
MX-5 -
Suspension

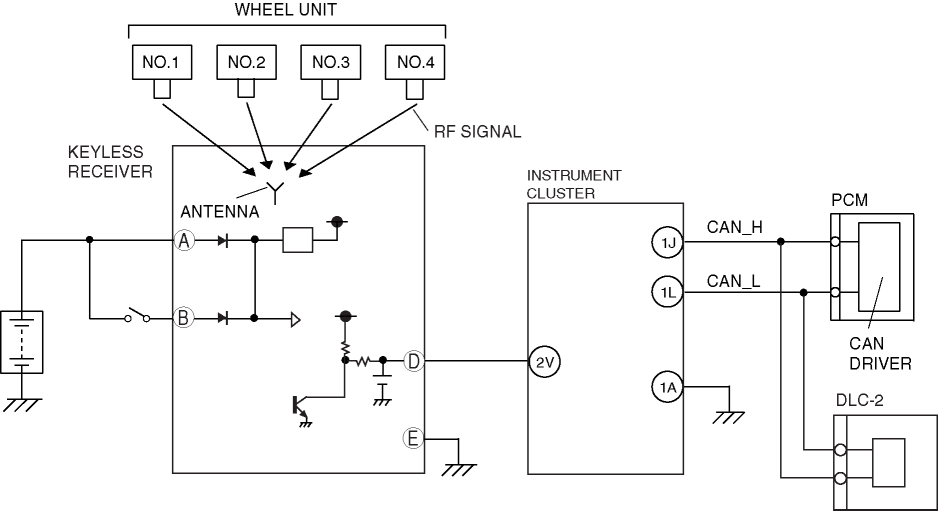

TIRE PRESSURE MONITORING SYSTEM (TPMS) WIRING DIAGRAM
With advanced keyress system or keyless entry system
Without advanced keyless system and keyless entry system
