2008 - MX-5 - Suspension

TIRE PRESSURE MONITORING SYSTEM (TPMS) WIRING DIAGRAM

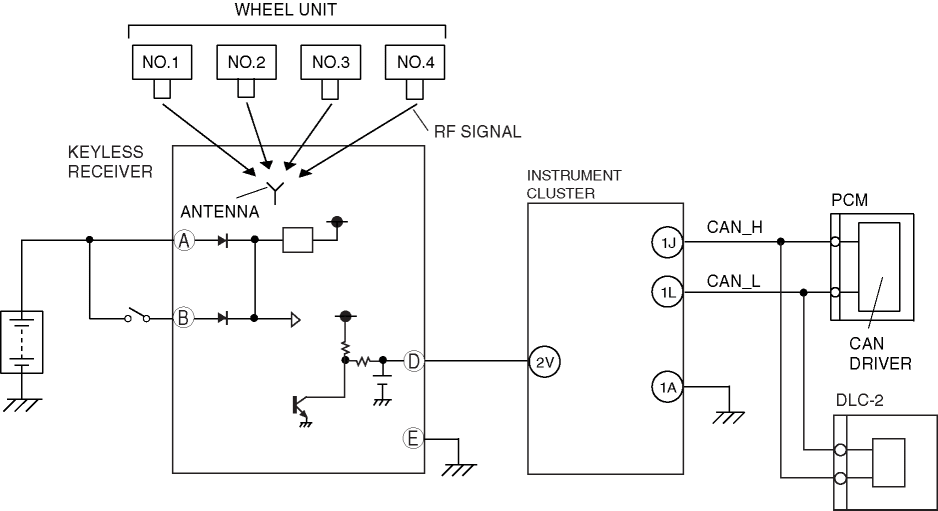

With advanced keyless system or keyless entry system

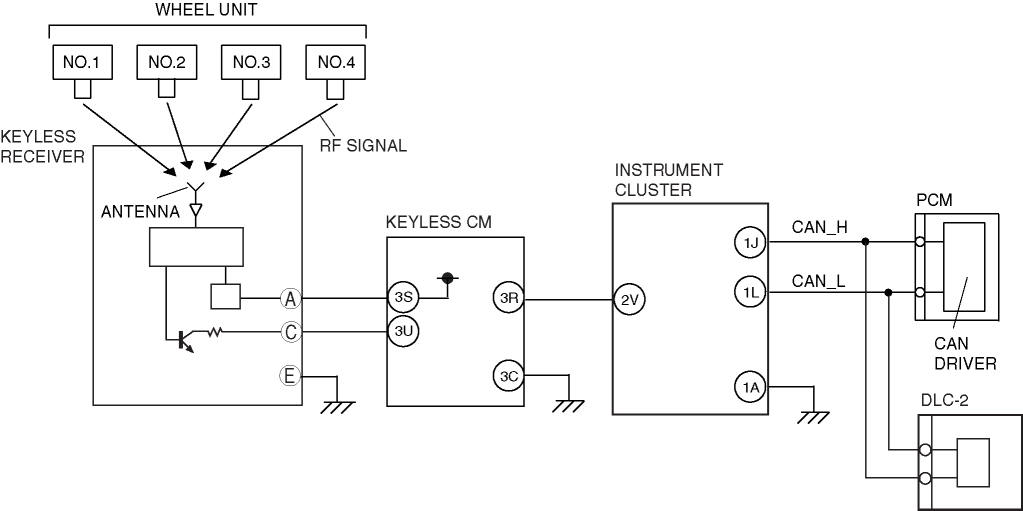

Without advanced keyless system and keyless entry system
