2008 - MX-5 - Engine

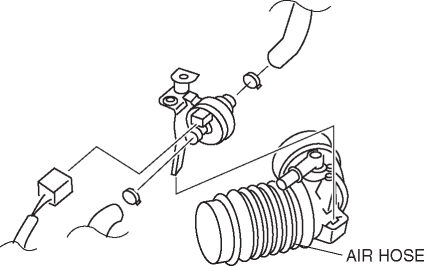

PURGE SOLENOID VALVE REMOVAL/INSTALLATION [LF]
1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF].)
3. Disconnect the purge solenoid valve connector.
4. Disconnect the vacuum hose from the purge solenoid valve.
5. Remove the purge solenoid valve from the air hose.
6. Install in the reverse order of removal.
