2008 - MX-5 - Engine

DRIVE BELT INSPECTION [LF]

NOTE:

• Drive belt deflection/tension inspection is not necessary because of the use of the auto tensioner.

1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [LF].)

NOTE:

• Use a mirror to see the position of the drive belt auto tensioner indicator mark.

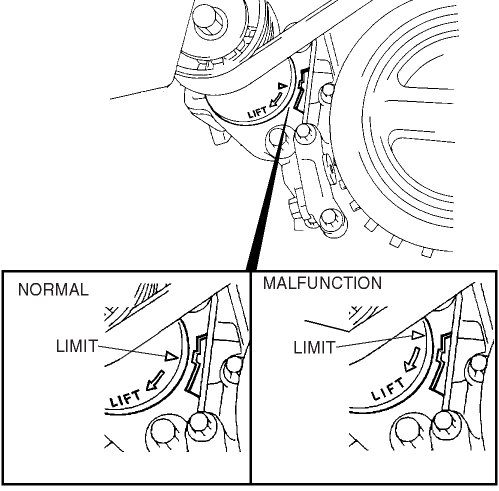

2. Verify that the drive belt auto tensioner indicator mark does not exceed the limit.

• If it exceeds the limit, replace the drive belt. (See DRIVE BELT REPLACEMENT [LF].)

AT

MT

3. Install the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [LF].)
