MELTING OF MAIN OR OTHER FUSES

[TROUBLESHOOTING HINTS]

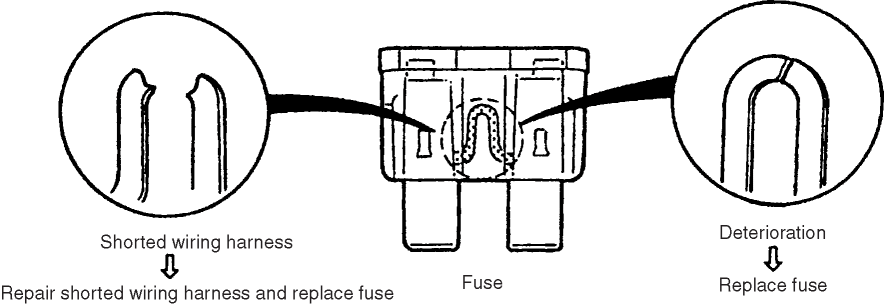

Inspect condition of fuse.

Damaged fuse

Related wiring harness

MAIN

MAIN fuse

• ROOM fuse

• IG KEY2 fuse

• ST fuse

• FAN fuse ^*1

• Generator

ROOM

ROOM fuse

• DLC-2

• PCM

IG KEY2

IG KEY2 fuse

• Ignition switch

ST

ST fuse

• Starter relay

FAN ^*1

FAN fuse

• Cooling fan relay No.1

• Cooling fan motor

• Cooling fan relay No.2

• Cooling fan motor

FAN ^*1

FAN fuse

• Cooling fan relay No.1

• PCM

• Cooling fan relay No.2

• PCM

• Cooling fan relay No.3

• PCM

FUEL PUMP

FUEL PUMP fuse

• Fuel pump relay

• Fuel pump

IG KEY1

IG KEY1 fuse

• Ignition switch

• METER fuse

METER

METER fuse

• Ignition relay

ETV

ETV fuse

• Drive-by-wire relay

• PCM

EGI COMP1

EGI COMP1 fuse

• Oil control valve

• Purge solenoid valve

• Variable intake air control solenoid valve

• EGR valve

EGI COMP2

EGI COMP2 fuse

• Drive-by-wire relay

• PCM

• Evaporative leak detection pump

• MAF sensor

• VSS (MT without ABS/DSC)

EGI INJ

EGI INJ fuse

• Fuel injector No.1

• Fuel injector No.2

• Fuel injector No.3

• Fuel injector No.4
